SMR-7522-03 Pulse Framer Receiver (BDIF)

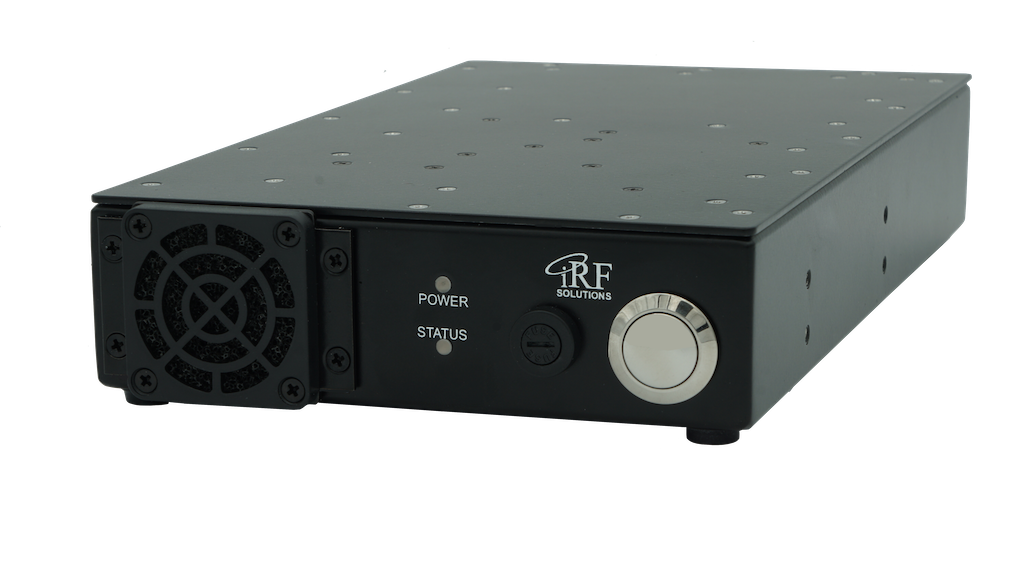

![SMR 7522 03 and SMR 7522 04 image](https://irfsolutions.wpenginepowered.com/wp-content/uploads/2023/12/SMR-7522-03-and-SMR-7522-04-image.png)
SMR-7522-03 Pulse Framer Receiver (BDIF)
- Tuning Range: 0.8 to 26.5GHz
- 140 or 160MHz Analog IF with up to 100MHz BW
- 10GigE Digital output (VITA-49 data packets time stamped via external GPS)
- On-board digitizer and FPGA resources for demodulation, DDC, channelization, pulse parameterization (Frequency, amplitude, and pulse width measurements) and spectral display generation (FFT, NCO)
- Maximum recording length
- Absolute maximum of 200.2us
- User-settable maximum between 300ns and 200.2us (25us default)
- Includes pre- and post0detection of approximately 60ns
- FPGA-based digitizer capable of 8- and 16-bit IQ data generation
- Pulse detection, framing, TOA management, and FIFO
